Applanix POSPac PP-RTX
Achieve centimeter level accuracy without base stations when using Applanix POSPac with Post-processed Trimble CenterPoint® RTX
Applanix POSPac PP-RTX
Applanix POSPac PP-RTX™ is a cloud-based global GNSS correction service that utilizes Trimble’s RTX technology to provide centimeter-level post-processed positioning accuracy without base stations. The Trimble RTX technology utilizes data from a dedicated global network of tracking stations to compute corrections to satellite orbit and clock information as well as atmospheric delay models. Applanix POSPac uses this data to post-process the GNSS-inertial trajectory and is an addition to the known SingleBase, SmartBase, and Multi-SingleBase augmentation processing methods.
Resources:
Discover the benefits of Applanix POSPac PP-RTX for your application
Crewed airborne applications
Due to the mission size, crewed airborne projects can exceed the maximum of 20 km distance from a single base station required for a precise GNSS-Inertial solution. PP-RTX has no such limitation and is hence ideal for crewed aerial surveys. Since PP-RTX is a global service, it eliminates the cost and headache of setting up or procuring local base stations in different countries or remote locations.
Uncrewed airborne applications (UAV)
Short flights (10 – 20 minutes) can be processed using IN-Fusion PP-RTX while in Fast Region coverage, or with IN-Fusion+ PP-RTX 2 processing in the Fast or Global Regions as long as the proper signal tracking has been enabled. Longer flights (> 20 minute) can be processed in either region, and with either PP-RTX or PP-RTX 2 to obtain the same level of accuracy.
Land applications
Applanix PP-RTX currently requires clean GNSS observables with minimal cycle slips and interruptions. Since land applications are typically exposed to frequent GNSS disruptions (buildings, vegetation, tunnels) in urban environments, the PP-RTX service will not achieve full accuracy. For missions in rural areas with no or only a few GNSS occlusions, it may produce adequate results. Contact Trimble Applanix for more details.
Marine applications
The Applanix POSPac PP-RTX service can be used for all POS MV systems and applications. For offshore projects and remote coastal line surveys, it is the only cost-effective method for achieving centimeter level position accuracy. For surveys in ports or missions close to the mainland, POSPac PP-RTX eliminates the cost needed to procure or set up local base stations.
Features
- Subscription based license (6, 12, 24 or 36 months)
- Approaching RTK accuracy
- 24/7/365 days monitored service

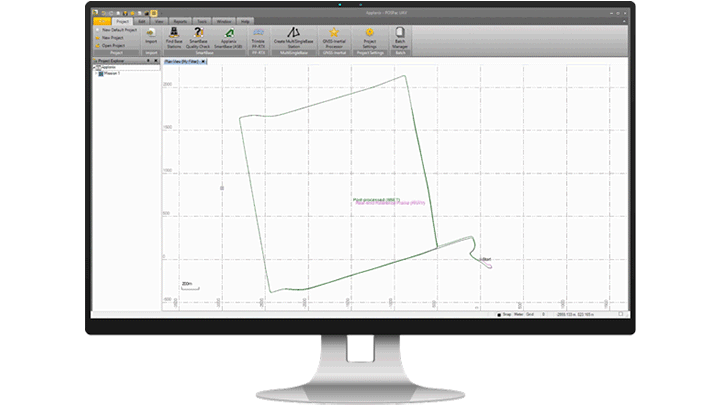

- One button click action in POSPac
- Worldwide coverage
Benefits
- Data are available within minutes after mission completion
- Eliminate ground base set up
- Eliminate the need to download base station data from various sources
- Eliminate the need to sign up on various GNSS service providers in different countries
Resources
About Applanix POSPac MMS 9
The Applanix POSPac mobile mapping suite, now with IN-Fusion+, PP-RTX 2 and tuned LiDAR QC tools, is our next generation, industry-leading software for direct georeferencing of mobile mapping sensors using GNSS and inertial technology. It is optimized for all environments and platforms (air, land, marine) and compatible with a variety of mapping sensors. This smart software solution achieves both maximum accuracy and maximum efficiency for direct georeferencing.
About Trimble CenterPoint® RTX
The Trimble CenterPoint RTX correction service is a high-accuracy, satellite-delivered global positioning service that is available across Applanix's entire product mapping portfolio. As a Trimble company, Applanix is unique in the marketplace in its ability to offer this industry-leading performance and reliability. The Trimble CenterPoint RTX correction service yearly subscription is delivered by L-Band satellite or by the Internet. This breakthrough technology provides high-accuracy GNSS positioning without the use of traditional reference station-based differential RTK infrastructure. Benefit from more uptime, fast initialization, hardware savings and more. Learn more on the Trimble Positioning Services website.
RTX real-time
Correction data via L-Band antenna or internet
Fast and accurate direct georeferencing results in real-time
"Quick Start" convergence
Multi-Satellite Support (e.g. GPS, GLONASS, GALILEO, BEIDOU, QZSS)
