Applanix LiDAR QC Tools
Applanix LiDAR QC Tools™, part of Applanix DG solutions, uses LiDAR SLAM as an aiding sensor to improve georeferencing accuracy in areas of poor GNSS coverage, enabling high-accuracy data collections in virtually any environment. Available as a cloud service!
Applanix LiDAR QC Tools
Applanix LiDAR QC Tools are a set of POSPac software tools developed by Trimble to achieve the highest level of georeferencing accuracy using LiDAR sensors. Applanix LiDAR QC Tools supports boresight calibration between IMU and LiDAR sensors, trajectory correction and LAS file point cloud generation. Read the white paper.
How it works
- Data magic: Transform LiDAR data into 3D Points (Voxels).
- Precision matching: Seamlessly align data in overlap regions.
- Advanced adjustment: Harness the power of iterative least squares adjustment.
- Trajectory perfection: Correct position and orientation for ultimate accuracy.
- Export with ease: Apply boresight angles to third-party software or create a new trajectory file.
Boresight calibration
Boresight calibration is an important part of LiDAR integration because any uncorrected misalignment between the IMU and LiDAR frame will result in a less accurate point cloud.
Applanix LiDAR QC Tools precisely estimate the boresight misalignment angles between an Applanix IMU and a synchronized LiDAR scanner. No ground reference is required.
Trajectory adjustment

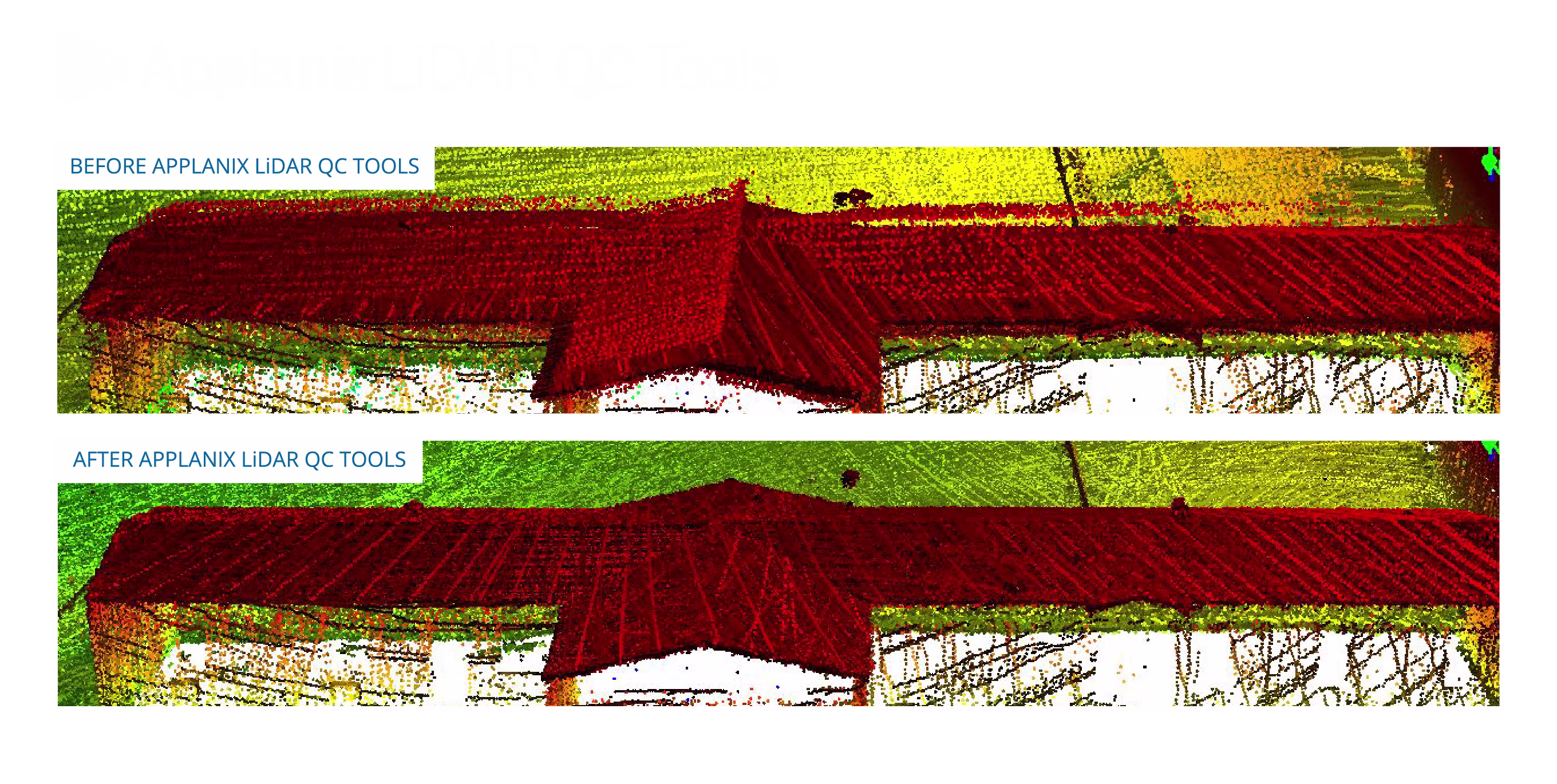

Trajectory adjustment is the correction of the GNSS-INS derived position and orientation based upon mismatches of overlapping LiDAR points. The LiDAR sensor itself becomes an aiding sensor to the GNSS-INS solution. The adjusted trajectory is used to produce the final LiDAR point cloud and to georeference any other imaging sensors (such as cameras). It is extremely powerful in GNSS-denied areas (e.g. urban or foliage area) and when using inertial sensors of lower accuracy.
Features
- Support for UAV and land mobile mapping applications
- Precise calibration of boresight misalignment angles between IMU and LiDARs
- Smart Trajectory adjustment in areas of low accuracy to minimize processing times
- LAS file generator
- Automatic streamlined workflow in POSPac
Benefits
- Achieves the highest accuracy in georeferencing LiDAR and Camera data in GNSS difficult conditions
- Accomplishes precise georeferencing even with low accuracy IMUs
- Eliminates the need for re-work and ground control points
- Results in substantial time and cost savings for georeferencing tasks.
Resources
About Applanix POSPac MMS 9
The Applanix POSPac mobile mapping suite, now with IN-Fusion+, PP-RTX 2 and tuned LiDAR QC tools, is our next generation, industry-leading software for direct georeferencing of mobile mapping sensors using GNSS and inertial technology. It is optimized for all environments and platforms (air, land, marine) and compatible with a variety of mapping sensors. This smart software solution achieves both maximum accuracy and maximum efficiency for direct georeferencing.
