GNSS/INS systems for hydrographic survey
Trimble Applanix POS MV
Trust your position, anywhere in the water
The Applanix POS MV delivers precise position, heading, attitude, heave and velocity data for your marine vessel and remote sensing equipment. By combining GNSS data with IMU-derived angular rate and acceleration, along with GNSS Azimuth Measurement System (GAMS) heading, it offers an accurate six degrees of freedom positioning and orientation solution.
Product Summary

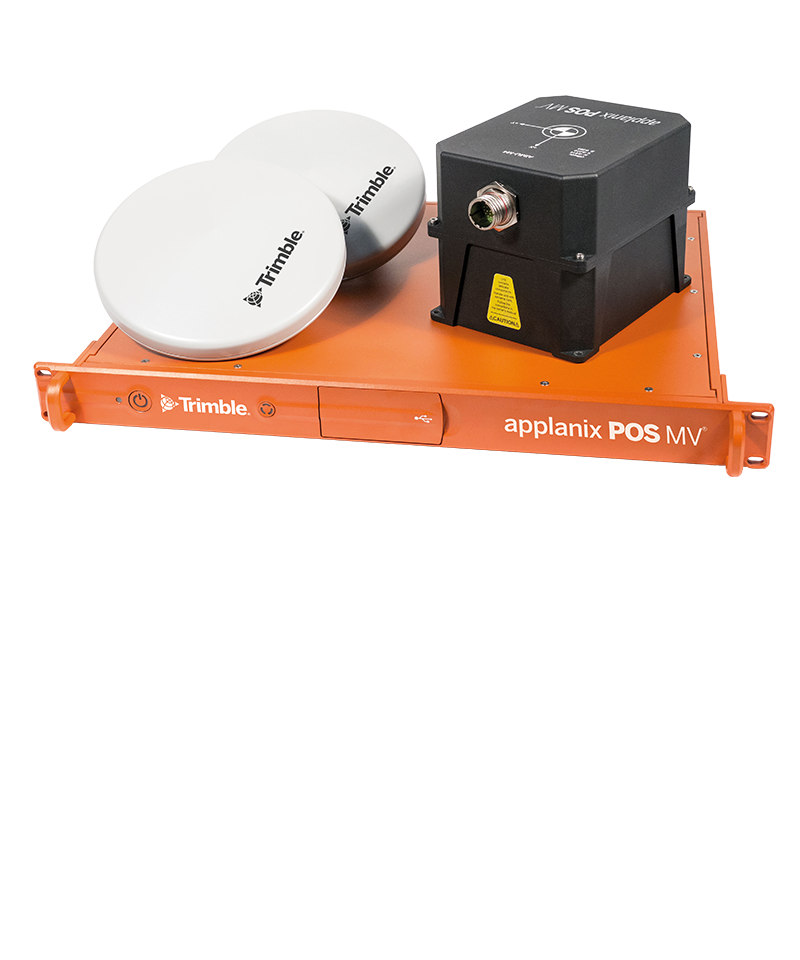

Applanix POS MV
Applanix POS MV is a compact, fully integrated turnkey position and orientation system (GNSS + INS) that leverages advanced inertial technology to deliver stable, reliable and repeatable positioning solutions for marine applications.
Product
Specifications
Applanix IN-Fusion+ ensures optimal GNSS aiding for any given conditions
TrueHeave requires no filter tuning or settling time, offering immediate accuracy
High-accuracy inertial measurement units featuring SmartCal™ with data time-tagged to microsecond accuracy
| Skip comparison of 5 items | ||||
| Product details | ||||
|---|---|---|---|---|
| Position | Roll & Pitch | Heading | True Heave | |
| SurfMaster OneSurfMaster One | Horizontal: 3 cm | Vertical: 6 cm | 0.03º | 0.06º with 4 m baseline | 0.08º with 2 m baseline | 5 cm or 5% Whichever is greater for up to 20 second periods | 2 cm or 2% Whichever is greater for up to 35 second periods |
| SurfMasterSurfMaster | Horizontal: 3 cm | Vertical: 6 cm | 0.03º | 0.06º with 4 m baseline | 0.08º with 2 m baseline | 5 cm or 5% Whichever is greater for up to 20 second periods | 2 cm or 2% Whichever is greater for up to 35 second periods |
| WaveMaster IIWaveMaster II | Horizontal: 3 cm | Vertical: 6 cm | 0.02º | 0.015º with 4 m baseline | 0.03º with 2 m baseline | 5 cm or 5% Whichever is greater for up to 20 second periods | 2 cm or 2% Whichever is greater for up to 35 second periods |
| OceanMasterOceanMaster | Horizontal: 3 cm | Vertical: 6 cm | 0.01º | 0.01º with 4 m baseline | 0.02º with 2 m baseline | 5 cm or 5% Whichever is greater for up to 20 second periods | 2 cm or 2% Whichever is greater for up to 35 second periods |
| EliteElite | Horizontal: 3 cm | Vertical: 6 cm | 0.003º | 0.008º with 4 m baseline | 0.015º with 2 m baseline | 0.025º single antenna, typical survey trajectories | 5 cm or 5% Whichever is greater for up to 20 second periods | 2 cm or 2% Whichever is greater for up to 35 second periods |
Features:
- Applanix IN-Fusion+ provides optimal GNSS aiding in any conditions
- TrueHeave eliminates the need for filter tuning and settling time, ensuring immediate accuracy
- High-precision inertial measurement units with SmartCal compensation technology
- Data time-tagged to microsecond accuracy for unparalleled precision
Benefits:
- Enhanced georeferencing in challenging GNSS environments
- Reliable heave measurements across a broad dynamic range
- Boosted productivity with minimal setup time
- Accurate attitude tracking under all dynamic conditions
- Eliminates timing errors for seamless data integration
Marine applications

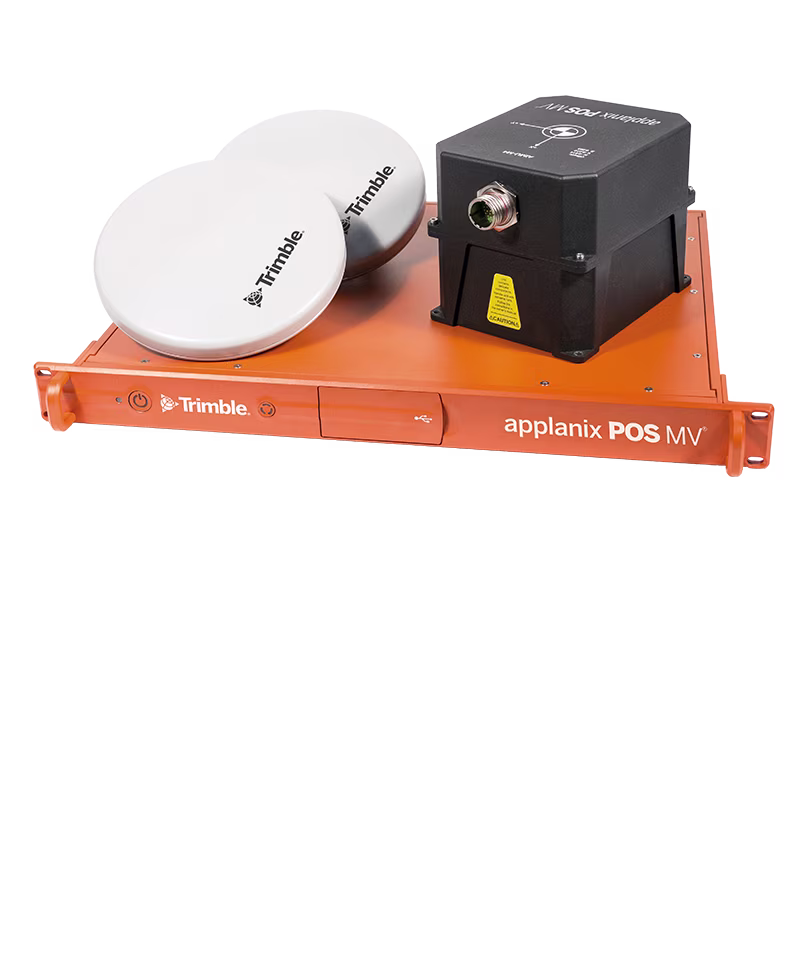

Applanix POS MV
Get in touch for recommendations for the Trimble Applanix hardware, software and accessories needed to get your job done.
Contact salesWorks with:
Applanix POSPac MMS
GNSS / INS direct georeferencing software for air, land and marine applications
