GNSS/INS systems for terrestrial mobile mapping
Trimble Applanix POS LV
Trust your position, anywhere on land
The Applanix POS LV blends cutting-edge inertial technology with a compact, integrated design for unmatched accuracy in urban and suburban environments. The rugged POS LVX variant is perfect for small vehicles and tight spaces, making it ideal for modular mobile mapping and autonomous applications. Elevate your projects with the best in reliable positioning.
Product Summary
Applanix POS LV

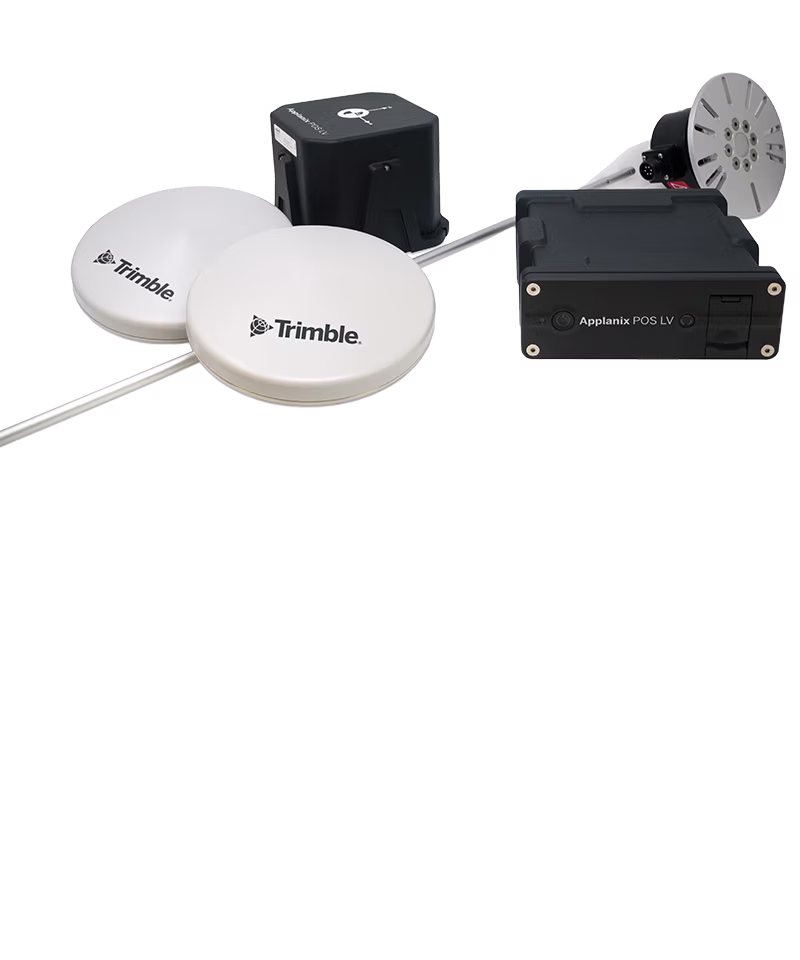

Applanix POS LV is a compact, fully integrated turnkey position and orientation system (GNSS + INS) that leverages advanced inertial technology to deliver stable, reliable and repeatable positioning solutions for land-based vehicle applications.
Product
Specifications
Accurate positioning: Achieves up to 0.020m X,Y position accuracy with GNSS and maintains precision even during GNSS outages
High-rate data collection: Provides high-rate (up to 200 Hz) position and orientation measurements, ensuring detailed and reliable data
Robust design: Operates efficiently in extreme temperatures and harsh environments, with quick installation, calibration and post-processing capabilities
| Skip comparison of 10 items | ||||
| Product details | ||||
|---|---|---|---|---|
| X,Y Position (m) | Z Position (m) | Roll & Pitch (deg) | True Heading (deg) | |
| POS LV 220With GNSS, post processedPOS LV 220With GNSS, post processed | 0.020 | 0.030 | 0.015 | 0.025 |
| POS LV 220Without GNSS for 60s, post processedPOS LV 220Without GNSS for 60s, post processed | 0.240 | 0.130 | 0.020 | 0.030 |
| POS LV 410/420With GNSS, post processedPOS LV 410/420With GNSS, post processed | 0.020 | 0.030 | 0.008 | 0.020 |
| POS LV 410/420Without GNSS for 60s, post processedPOS LV 410/420Without GNSS for 60s, post processed | 0.120 | 0.100 | 0.020 | 0.020 |
| POS LV 610/620With GNSS, post processedPOS LV 610/620With GNSS, post processed | 0.020 | 0.030 | 0.0025 | 0.015 |
| POS LV 610/620Without GNSS for 60s, post processedPOS LV 610/620Without GNSS for 60s, post processed | 0.100 | 0.070 | 0.0025 | 0.015 |
| POS LVX-120With GNSS, post processedPOS LVX-120With GNSS, post processed | 0.020 | 0.030 | 0.050 | 0.080 |
| POS LVX-120Without GNSS for 60s, post processedPOS LVX-120Without GNSS for 60s, post processed | 1.200 | 0.500 | 0.100 | 0.500 |
| POS LVX-125With GNSS, post processedPOS LVX-125With GNSS, post processed | 0.020 | 0.030 | 0.025 | 0.060 |
| POS LVX-125Without GNSS for 60s, post processedPOS LVX-125Without GNSS for 60s, post processed | 0.8 | 0.2 | 0.05 | 0.2 |
Features:
- Seamlessly integrates with Applanix POSPac MMS, the industry-leading software for Direct Georeferencing of mobile mapping sensors using GNSS and inertial technology, offering advanced post-processing capabilities
- POS Computer System enables raw GNSS data from as few as one satellite to be processed directly into the system to compute accurate positional information in areas of intermittent or no GNSS reception
- IMU generates a true representation of vehicle motion in all three axes
- Streamlined data workflows
- Worldwide availability
- Embedded GNSS receivers provide heading assistance to supplement the inertial data
- Quick operational capability with installation, calibration and training completed in as little as three days
- Distance measurement indicator (DMI) computes wheel rotation information to aid vehicle positioning
Benefits:
- Generates continuous, accurate position and orientation information under the most difficult GNSS conditions
- Allows quick operational capability with installation calibration and training completed in as little as three days
- Produces precise, high-rate, low-latency real-time data
- Includes an automatic redundant data logging capability
- Requires less space in the survey vehicle, using a small, lightweight POS Computer System (PCS)
- Operates at normal highway traffic speeds for cost-effective data capture
- Uses the latest survey-grade GNSS technology for improved positioning performance
Land applications
Applanix POS LV
Get in touch for recommendations for the Trimble Applanix hardware, software and accessories needed to get your job done.
Contact salesWorks with:
Applanix POSPac MMS
GNSS / INS direct georeferencing software for air, land and marine applications
