Trimble® APX-15 EI UAV is a GNSS-Inertial Direct Georeferencing solution with Dual IMUs
Aerialtronics Altura Zenith is the world’s most versatile commercial drone
Aerialtronics is an end-to-end solution developer that utilizes drones, artificial intelligence and IoT data to provide businesses with augmented and actionable insights that create a perfect synergy between aerial applications and everyday business operations. Over ten years, Aerialtronics has developed and provided drone solutions for professional applications, including survey, agriculture, inspection, and mapping. Plowman Craven, a leading survey company, turned to Aerialtronics for a UAV-based survey solution for rail.
The Altura Zenith commercial drone from Aerialtronics is equipped with a high-capacity battery, can fly for up to 40 minutes, has eight motors to ensure redundancy, is coupled with the largest payload compatibility and has fast and simple “click and go” operations. Virtually any payload can be adapted to fit.
For each client, Aerialtronics can build an integrated, custom payload and solution for the specific requirements. One such integration is with the Trimble APX-15 EI and POSPac UAV GNSS-Inertial post-processing SW. The APX15-EI is a compact solution comprising a survey-grade GNSS receiver and dual inertial measurement units, one embedded onto the GNSS/Inertial board and one as an external unit connected remotely. With this feature, the APX-15 EI can provide automatic support to the Zenith gimbaled platform. This together with the POSPac UAV SW, enables pixels to be geolocated at the centimetre to millimetre level without GCPs while reducing the amount of sidelap flown, thus increasing the area flown per mission.
Used every day to obtain the most accurate UAV data collected from multispectral, hyperspectral, radar, LiDAR and RGB cameras. It enables a great variety of mapping products to be generated without the use of ground control.
Examples of UAV applications include:
Topographical Survey
3D Mapping
Utility Inspections
Asset Management
Agriculture
The Applanix DG is the enabling technology for: Corridor Mapping (one flight line), Large Area Mapping, Multi-flight missions or BVLOS operations.

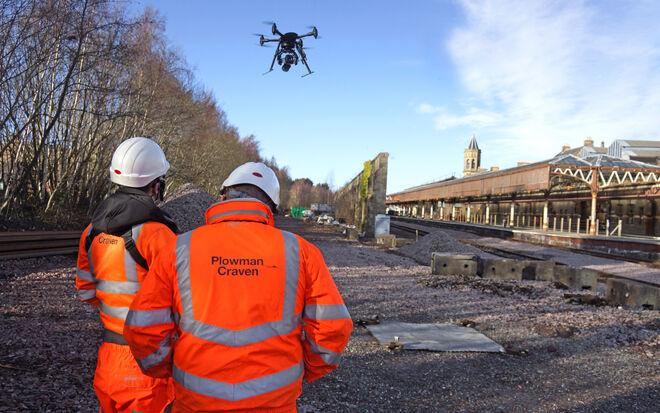

Traditional rail surveys are more expensive due to rail closures while also requiring dangerous and difficult access to busy railways. For many years, Plowman Craven has been an industry leader in the provision of rail survey data. Plowman Craven sought a better solution, one where it will:
Reduce the risk associated with accessing rail tracks
Reduce the cost and time associated with ground control points
Collect the data quickly
Provide high accuracy
Plowman Craven provides integrated measurement and consultancy services to the property and infrastructure markets. Pioneering technical innovation to deliver proven expertise and trusted results throughout the project lifecycle, it plays a key role in some of the most prestigious construction and redevelopment projects in the UK and overseas.

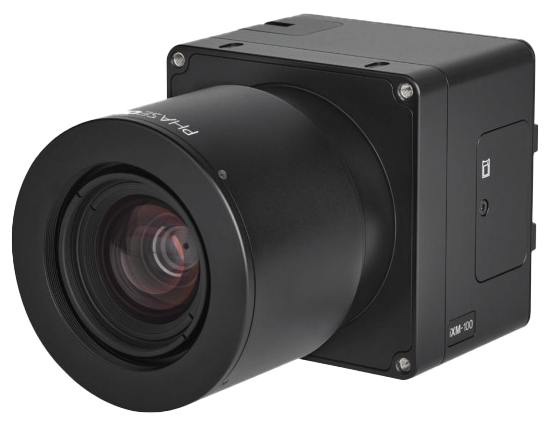

Plowman Craven turned to Aerialtronics for a custom solution. Aerialtronics built a system comprised of the Aerialtronics Altura Zenith ATX8 drone with an integrated APX-15 EI with POSPac UAV SW and a Phase One iXM100 with an 80mm lens called the Vogel R3D.
“The Vogel R3D revolutionizes rail survey and inspection. It removes the need to access the tracks physically and all of the expenses and time required. Fast data capture, data accuracy quality superior to traditional laser-scanning systems and a sub 5mm accuracy suitable for detailed track design, make Vogel R3D a very attractive proposition with a wide range of applications. In addition, the high-definition photography we obtain effectively supplements current survey deliverables.” — Tom Wren, Technical Consultant – Infrastructure Services at Plowman Craven.
Plowman Craven’s solution, called the Vogel R3D, is a unique, UAV-based solution capable of comprehensive drone surveys of rail infrastructure to a sub-5mm accuracy in a fraction of the time of traditional methods. This ground-breaking system captures overlapping aerial images of an entire site. That imagery can be converted into 3D point cloud data that can be used to create a range of deliverables including track alignments, detailed topographic surveys, 3D BIM models and interactive site visualisations. The Vogel R3D has been successfully trialed by Network Rail with the survey accuracy results approved. It has now been used on over 70 live projects. The costs involved in closing an operational railway for maintenance or inspection can be incredibly expensive, costing thousands and taking many months to plan. Having this integrated solution is a considerable cost and program saving.
Centimeter accuracy in a fraction of the time of traditional methods
No need for Ground Control Points (GCPs)
No need to access tracks
Increased safety
Enables regular inspection of rail track condition
Reduction in maintenance costs
Increased reliability
Compact, easy-to-operate and cost-effective solution
Can produce 3D mapping products
Improved productivity — with optimized workflow means final products are generated within hours
